Press Brake Tooling for the Machine You Already Run

Punches, dies, hemming tools, clamping systems, crowning tables and shear blades — standard from stock or made from your drawing.

  • Amada style
  • Wila / Trumpf style
  • Bystronic style
  • American style
  • Custom from drawing
Download Catalog (PDF)
Product range

Start With Your Press Brake, Then Your Part

The first question is always the same: will the tool fit my machine? Our range is organised by tooling system, so you can go straight to the clamping style of your press brake — then choose the profile, angle and radius your part needs.

  1. 01Amada StylePunches · Single V · Double V · Multi V · T dies10 items
  2. 02American StylePunches · Dies1 items
  3. 03Bystronic StylePunches · Dies3 items
  4. 04Clamping SystemsPunch adapters · Die holders · Quick & pneumatic clamps · Crowning tables4 items
  5. 05Hemming ToolsHemming punches · Hemming dies · Flattening · Custom2 items
  6. 06Protective FilmMark-free bending film1 items
  7. 07Shear BladesGuillotine · Hydraulic · Shearing machine · Custom1 items
  8. 08Special ToolingRadius · Offset / Z · U · Mark-free · Adjustable V · Hinge · Custom4 items
  9. 09Tooling CabinetsStorage for punches and dies1 items
  10. 10Wila / Trumpf StylePunches · Dies · safety buttons5 items
  • Amada Style Featured Image

    Amada Style

  • American Style

    American Style

  • Bystronic Style

    Bystronic Style

  • Clamping Systems Featured Image

    Clamping Systems

  • Hemming Tools Featured Image

    Hemming Tools

  • Protective Film Featured Image

    Protective Film

  • Shear Blades Featured Image

    Shear Blades

  • Special Tooling Featured Image

    Special Tooling

  • Tooling Cabinets Featured Image

    Tooling Cabinets

  • Wila / Trumpf Style Featured Image

    Wila / Trumpf Style

Browse All Products
Catalogue

Find Your Tool by System, Profile and Angle

A selection of standard references from our catalogue, with their profile drawings. Most profiles also exist in other angles, radii, heights and lengths — download the full catalog (PDF).

32 products

No standard item listed online for this selection yet.

This part of the range is made to order. Send us your machine model, the tool profile or a drawing and we will quote the right tool.

Custom tooling

Can't Find Your Tool? We Make It From Your Drawing.

Tight flanges, large radii, deep boxes, U, Z and offset bends, hemming or door frames: when a standard punch cannot make your part, our engineers design the tool around it — then machine, heat treat, grind and inspect it in our own factory.

Send us what you have
  • Part drawing or sample photo
  • Press brake brand and model
  • Tooling system
  • Material and sheet thickness
  • Bend angle and inside radius
  • Tool length and quantity
  • Hardness or surface requirements
  • Bending sequence, if critical
See Customer Cases

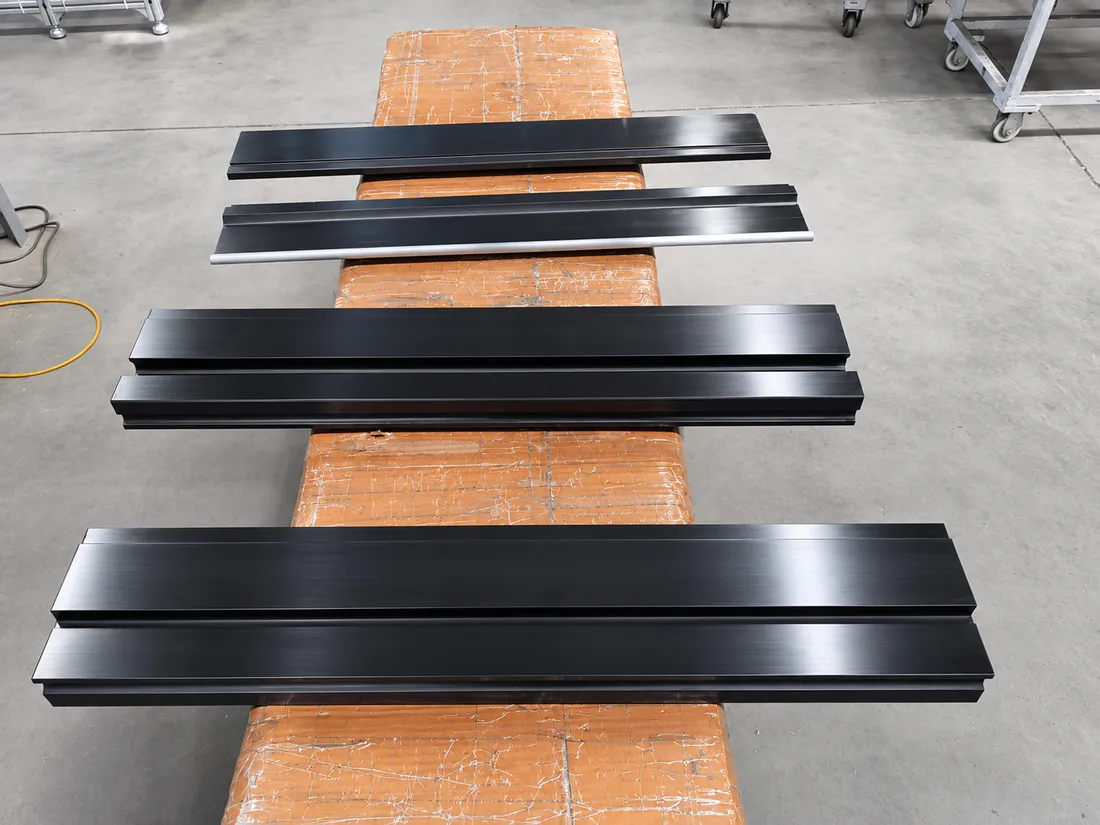

Custom black oxide hinge forming tooling made by LYNCCN

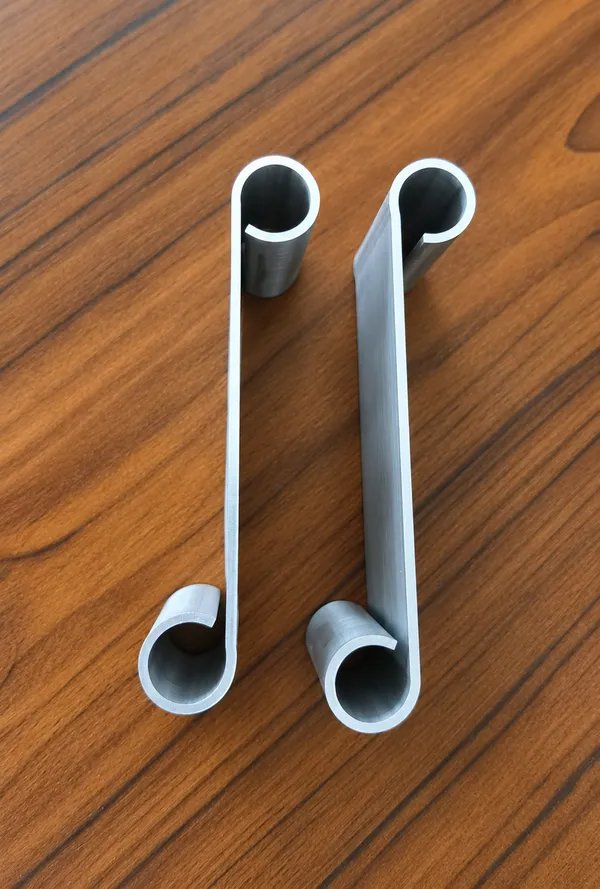

2 mm stainless steel hinge parts formed with the custom tooling

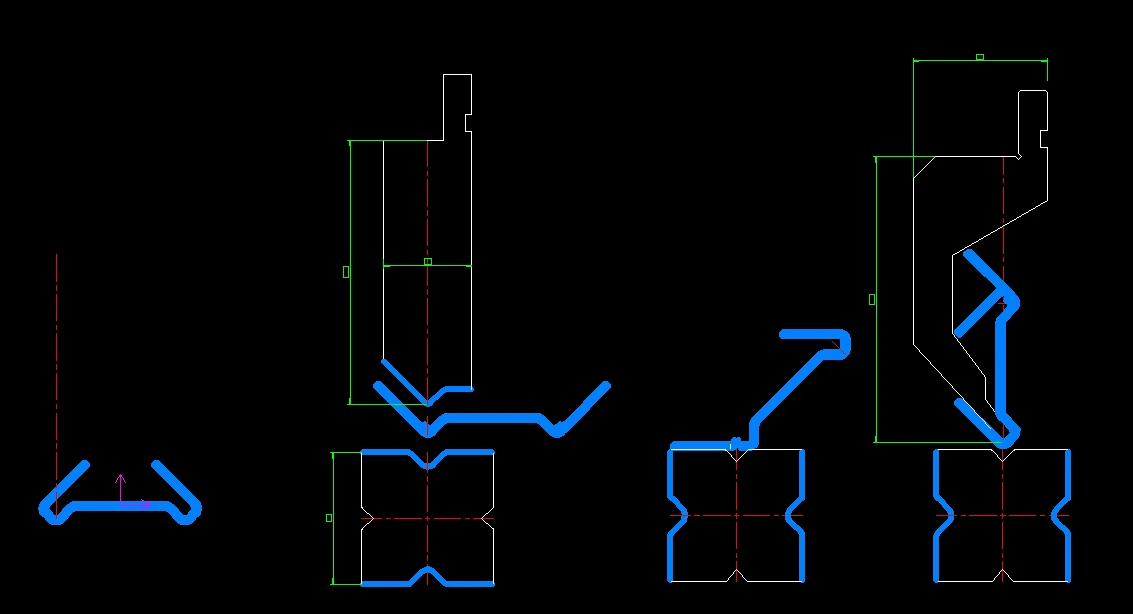

Bending sequence study with a workpiece clearance punch

Clearance studyBending sequence checked against the punch profile before machining.

BelarusCustom hinge tooling for 2 mm stainless steel, R10 / R8

  1. 01

    Inquiry

    Drawing, sample photo or machine model

  2. 02

    Engineering review

    Bending requirement and tool profile evaluated

  3. 03

    Advice & quote

    Technical recommendation and price

  4. 04

    Drawing confirmed

    Material, quantity and drawing approved by you

  5. 05

    Made & inspected

    Production, inspection and export packing

Selection guide

Four Questions to Answer
Before You Order

01

Will it fit my press brake?

Start with the tooling system of your machine: Amada style, Wila / Trumpf style, Bystronic style or American style. The clamping part of the tool must match your upper clamp and die holder.

Amada style tools are supplied in 835 and 415 mm lengths or as 835 / 805 mm segmented sets. Send us your press brake brand and model and we confirm the clamping before quoting.

02

Can it bend my part?

Choose the punch profile from your part: straight punches for simple bends, gooseneck punches for return flanges, acute punches for 30° and hemming work. Then choose the die: single V, 2V, multi V or T die.

The V opening depends on the sheet thickness — use the calculator. If the part collides with a standard punch, we design a clearance or custom profile.

03

How precise, and how long will it last?

Our tools are made from 42CrMo alloy steel. Full-body heat treatment to HRC 50 ± 2, with induction hardening (HRC 54 ± 2, 3–4 mm deep) or laser hardening (HRC 54 ± 2, 1–1.5 mm deep) on the working area.

Working surfaces are precision ground; hardness, dimensions, straightness and angle are checked before shipping.

04

Price, delivery and service

Standard tools in stock usually ship in 3–7 days, non-standard tools take 25–30 days. MOQ is one piece (minimum order amount USD 1,000) and your logo can be marked on the tools.

If a quality problem is confirmed within 3 months of delivery, we replace the tool free of charge.

Air bending calculator

Suggested V opening and bending force for 90° air bending.

  • Die V opening—
  • Force per metre—
  • Total force—
  • Inside radius ≈—
  • Shortest flange—

From the capacity chart of air bending in the LYNCCN catalog (V = 6 × t up to 2.6 mm, 8 × t up to 8 mm, 10 × t up to 10 mm, 12 × t above). Indicative values — check the maximum load of your tools.

Contact us

Have a Drawing? Let's Build Your Tooling.

Tell us your press brake model, material, thickness and bend angle — or simply send a drawing. Our engineers reply within 24 hours with a recommendation and a quote.
