Radius Tool Holder H67mm

01Product Introduction

02Product Advantages

• Made for Amada-type clamping

  Amada system tang, standard 835 / 415 mm lengths and segmented 835 / 805 mm sets for press brakes with Amada-type upper clamps.

• Tough 42CrMo alloy steel

  A chromium-molybdenum steel chosen for strength under load — up to 100 T/m for this profile.

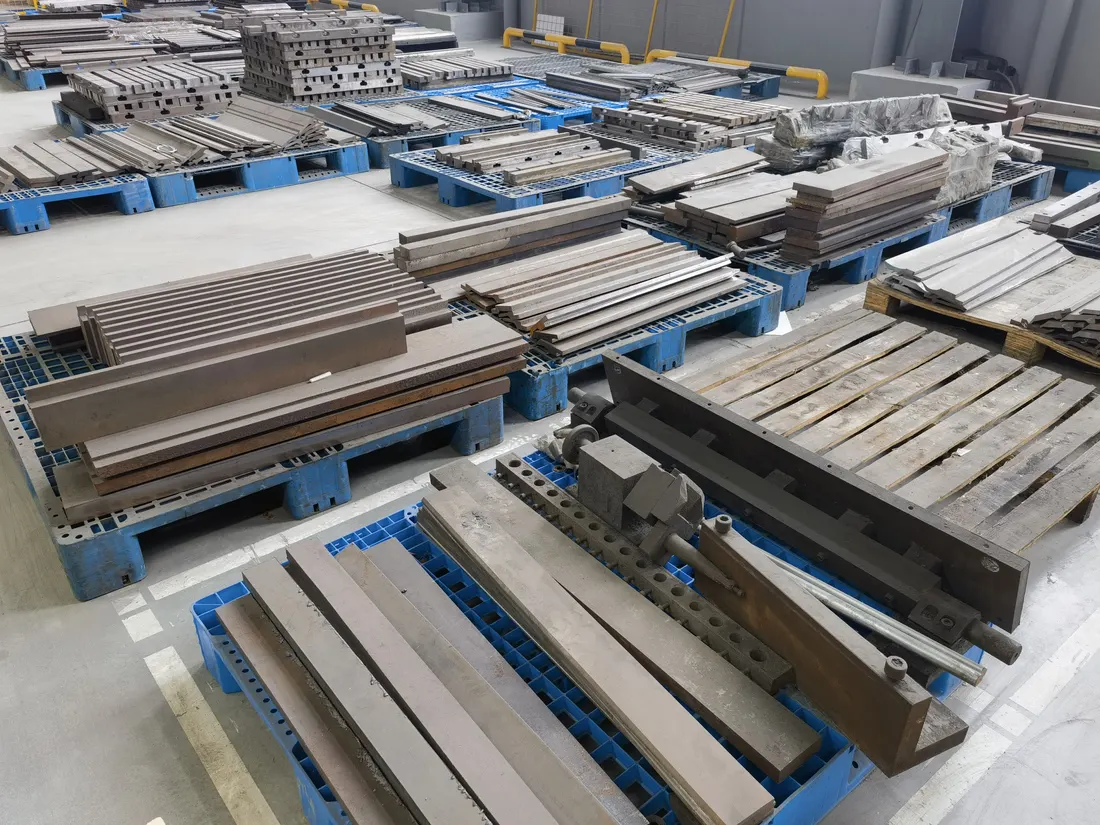

• Hardened where it wears

  Full-body heat treatment HRC 50 ± 2, plus induction (HRC 54 ± 2, 3–4 mm) or laser hardening (HRC 54 ± 2, 1–1.5 mm) on the working area.

• Precision ground

  Working surfaces are ground on CNC grinders for consistent angles from one tool to the next.

• Protected surface and packing

  Sand blasted / blackened surface; shipped in a wooden crate with soft film layers inside.

• Other variants on request

  Different angle, radius, height, length or your own drawing — we machine the tool to your specification.

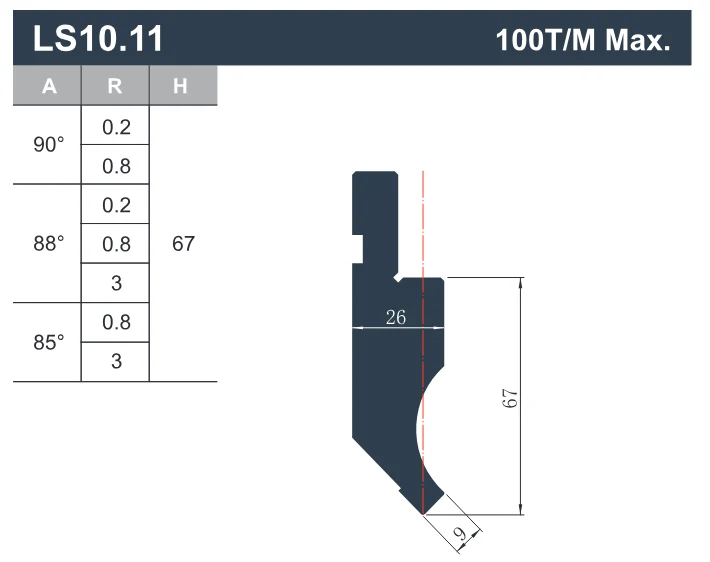

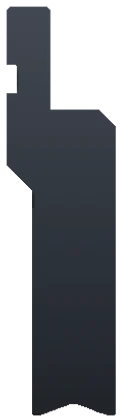

03Technical Parameters

Model	LS 10.11.0
Tool system	Amada system
Length	835 / 415 / 835 seg. / 805 seg. mm
Total height	97 mm
Useful height	67 mm
Thickness	26 mm
Steel type	42CrMo
Tonnage	100 T/m max.
Angle	85°
Radius	0.8 mm
Heat treatment	Full-body HRC 50 ± 2 · induction HRC 54 ± 2 (depth 3–4 mm) · laser HRC 54 ± 2 (depth 1–1.5 mm)
Surface treatment	Sand blasting / blackening
Making time	20–25 days
Package	Wooden crate with soft film layers inside

Same profile, other tips

Angle	Radius	H
90°	R0.2 · R0.8	67
88°	R0.2 · R0.8 · R3	67
85°	R0.8 · R3	67

04Product Uses

• Electrical cabinets & enclosures

  Panels, doors, frames and covers in thin and medium sheet.

• General sheet metal fabrication

  Brackets, channels, machine covers and boxes in daily job-shop production.

• Stainless steel & kitchen equipment

  Stainless panels and housings where consistent angles matter.

• Door frames, elevator & HVAC parts

  Repeated profiles for building and ventilation components.

05Operate Guide

1. Check system and load

   Confirm your upper clamp is Amada type and keep the bending force below 100 T/m for this punch.

2. Clean before clamping

   Wipe the tang, the clamp and the die seat; install segments with the same orientation.

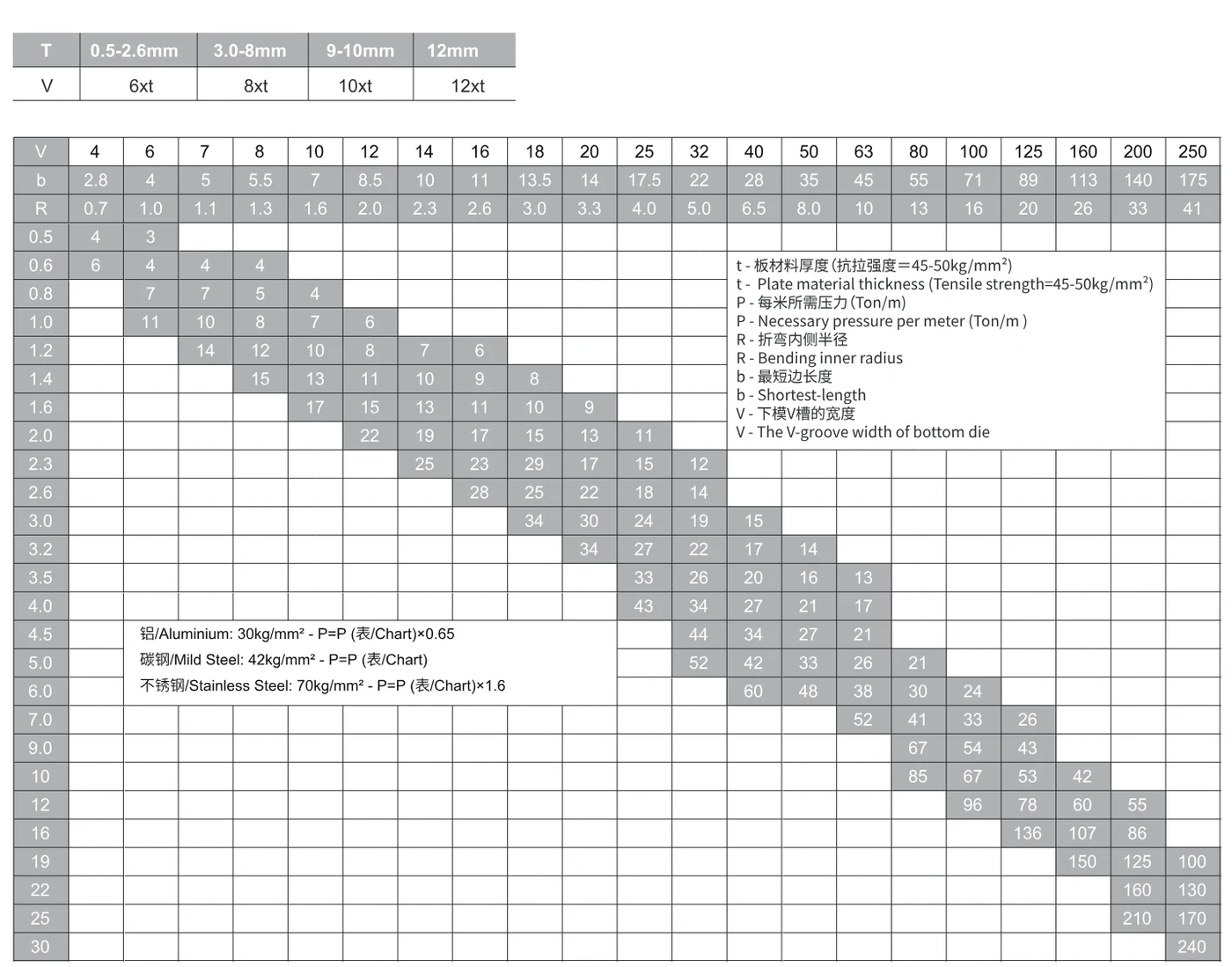

3. Choose the die opening

   Select the V opening from the sheet thickness — about 6 × t up to 2.6 mm, 8 × t from 3 to 8 mm.

4. Clean, oil and store

   After use, clean and oil the tools and store them in a tooling cabinet to protect the working edges.

06Product Video

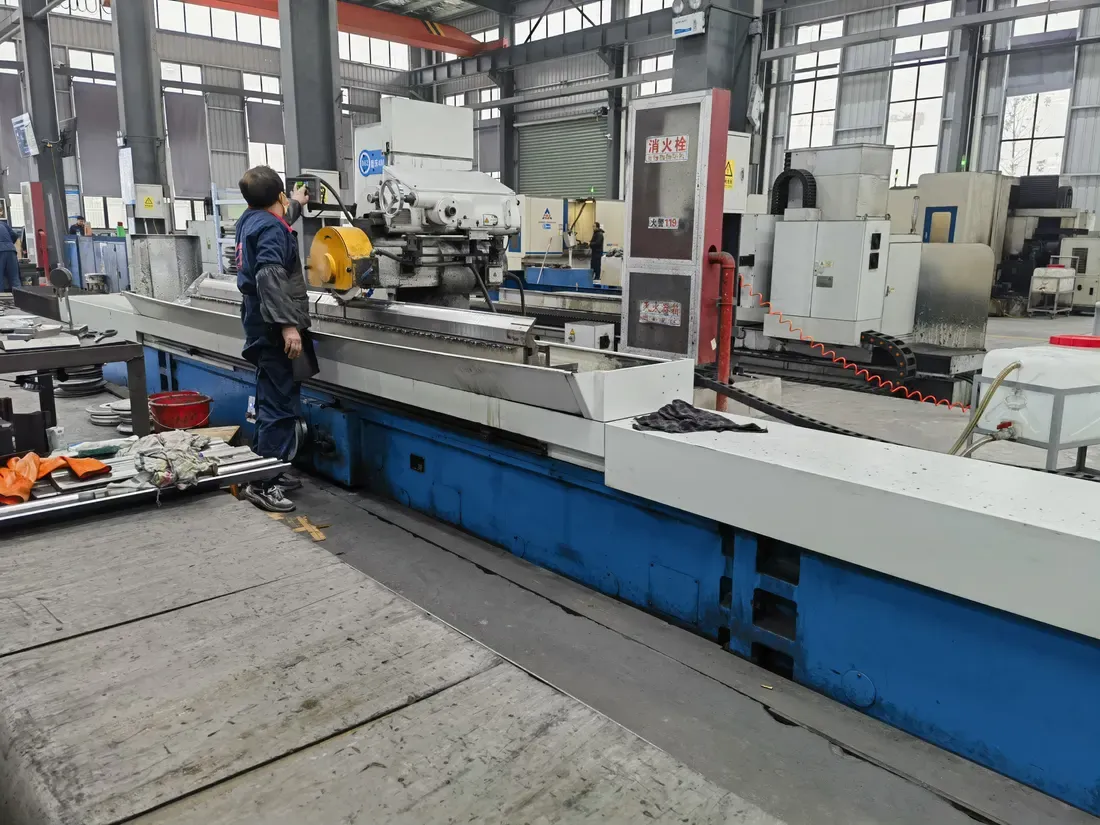

Watch how our tooling is made

Company and factory video. A dedicated video of this punch can be added here.
